Radio-frequency identification (RFID) is an emerging technology and is one of the most rapidly growing segments of today’s automatic identification and data collection industry [1]. High frequency (HF) and ultra-high frequency (UHF) bands have many advantages over other bands that are frequently used in RFID. In terms of operating frequency bands, HF bands are widely applied in short-distance reading applications because they provide improved security and greater information storage capability because of their near-field operation. UHF bands offer better speed and are often applied in long-distance reading applications [2]. In some special cases, such as logistics, inventtory management and bioengineering, both short- and longdistance reading are needed. Therefore, a single RFID antenna with a dual operating frequency band is required. Combining both RFID standards on the same tag would increase this antenna’s capabilities and could lead to new applications. However, the use of two chips for two bands would increase the cost of the tag. In this paper, a single-feeding port for an application specific integrated circuit (ASIC) mono-chip is used for the dual-band RFID tag antenna.

Prior research on HF-UHF dual-band antennas has already been published [3–6]. Typically, the spiral coil is used for the HF antenna to operate at 13.56 MHz. UHF bands vary widely because of the frequency allocations of different countries. In Korea, based on the Korea Communications Commission, UHF bands from 917 MHz to 923.5 MHz are used [7]. A meander-line dipole is often used to generate the UHF antenna placed inside or outside of the HF coil. However, the current on the vertical conductor of each dipole arm is in the opposite direction to the current on each adjacent vertical conductor. This results in a far field that is canceled by these elements. Thus, the radiation from the meander-line dipole is mainly due to the small horizontal segments connecting each vertical segment [8]. In [8], a meander open complementary split ring resonator (MOCSRR) particle was presented to overcome the restrictions of the conventional meander-line dipole. In this paper, a novel MOCSRR structure is presented to handle UHF bands.

This paper is organized as follows. The antenna’s structure and dimensions are introduced in Section II. In Section III, the design methodology and results are given from the analysis of HF and UHF parts, respectively. The fabrication and measurement results of the dual-band antenna are presented in Section IV.

The proposed antenna structure is shown in Fig. 1. The HF and UHF antennas are placed on two sides of the FR4 (ε = 4.4, tanδ = 0.02) substrate with 1.2 mm thickness and the following dimensions: W_c = 45 mm, and L_c = 82 mm. The proposed antenna has a single-feeding port for mono-chip HF-UHF bands that are connected by via with radius of R_v = 0.2 mm. The dimensions of the feeding port are as follows: W_m = 1.8 mm, L_m = 5.4 mm, and L_p = 2 mm. The HF antenna is a three-turn spiral coil with W_s = 42.2 mm, L_s = 77.2 mm, D₁ = 1 mm, D₂ = 0.3 mm, D₃ = 17.5 mm, and D₇ = 4.9 mm. The MOCSRR dipole UHF antenna structure parameters are W_p = L_s = 28.2 mm, D₄ = 0.7 mm, D₅ = 0.3 mm, D₆ = 2.8 mm, and A = B = 4.9 mm. It should be noted that the UHF antenna has a diagonal symmetric structure. Two rectangular slots in the two arms are used to fine-tune the impedance. The dual-band RFID antenna was designed to match the ASIC chip impedance, which has a standard impedance of 50 Ω. The chip was self-designed to match the standard impedance at the operating dual-band frequency. The design was simulated and optimized in ANSYS HFSS software (ANSYS Inc., Canonsburg, PA, USA). A two-solution frequency at HF and UHF bands was applied in the simulation software to obtain the wide-band results from HF to UHF frequencies.

The basic process of designing a dual-frequency antenna is to create an HF and a UHF antenna separately and then join these two antennas together with a single feeding-port. However, since these two antennas are joined together in parallel, the UHF antenna will affect the HF antenna’s operation and vice versa. In the proposed antenna, the HF and UHF antennas are placed on either side of the substrate to minimize the mutual interaction and decoupling issues between the HF and UHF antennas.

For the design of the HF band antenna, a printed three-turn spiral coil is used. It is important that the HF antenna coil is placed at the outermost region of the available space in order to collect more magnetic flux. For a combined HF and UHF chip with a single port, a series capacitor that is tuned to the desired resonant frequency presents a short circuit at the chip input for UHF and thus inhibits operation [9]. In this paper, a set of RLC components is used to tune the resonant frequency of 13.56 MHz and reduce the resistive losses in the antenna coil as shown in Fig. 1.

Various antenna types are used for UHF band operating frequencies, such as patch, slot, and meander-line antennas. The planar meander-line antenna is the most useful because of its advantages of size reduction and simple configuration. However, the radiation from the meander-line dipole is restricted because of the opposite direction of the current in each adjacent vertical conductor. The MOCSRR particle was presented to improve upon the conventional meander-line dipole in [8]. In this paper, a novel and modified MOCSRR structure is used to generate a UHF operating frequency fed with a 50-Ω microstrip feeding line, as shown in Fig. 1.

After completing the designs of the HF and UHF band antennas separately, the combined HF and UHF band antenna is implemented to become a single antenna with a single-feeding port. However, the HF and UHF band antennas affect each other, which is conducive to change of the antenna characteristics. Therefore, the dual-band antenna is tuned and modified to obtain the desired operation of both frequency bands.

The simulation results of the return loss S₁₁ parameters for the dual-band antenna are shown in Fig. 2. The resonant frequency of the HF band antenna is 13.52 MHz with a low return loss of -39.92 dB, whereas the resonant frequency of the UHF band antenna is 921.2 MHz with a -43.19 dB return loss. It is obvious that the dual-band antenna is a good match for the feeding port impedance. The details of each band frequency are plotted by two inset figures for the HF and UHF bands, respectively. The -10 dB bandwidth of the UHF band covers 914.3 MHz to 929.5 MHz, which includes the expected frequency range. The simulated radiation pattern and the antenna gain of the dual-band antenna at 921 MHz are illustrated in Fig. 3. The gain of the proposed antenna is around 2 dBi. It presents an omnidirectional characteristic of the antenna at the φ = 90° plane.

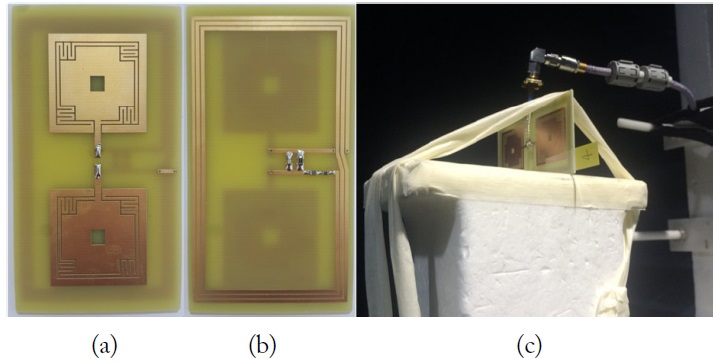

From the analysis and design of the above sections, the proposed antenna was fabricated and measured to verify its performance, as shown in Fig. 4. The dual-band antenna is printed on a 1.2-mm thick FR4 substrate, and the overall size is 82 mm × 45 mm. A coaxial cable is connected to the single-port dualband antenna. For a dipole antenna to operate properly, the currents on both arms of the dipole should be equal in magnitude. Ideally, the current along the dipole arm that is connected to the outer conductor of the coaxial cable should be equal to the current on the other dipole arm [10]. However, some of the current may travel down the outside of the outer coaxial cable, leading to an unequal current magnitude between the two arms of the dipole. In addition, because of several factors including the fabrication tolerance, losses that occur during the measurement process and upon exposure to the environment, and the mismatch between the feeding line and the antenna in actual fabrication, the dual-band frequencies shift and differ from the simulation results. As a consequence, optimization is required to ensure that the measurement results obtain the expected dualband frequency bands.

The coaxial cable of the dual-band antenna was connected to a Protek A333 Network Analyzer to measure the return loss. The measured S₁₁ parameters of the dual-band antenna are shown in Fig. 5. The resonant frequencies in the measurement results are slightly different from the ones in the simulation results, with an HF frequency of 13.62 MHz and a UHF frequency of 922.5 MHz, respectively. Although the return losses are also higher, they are acceptable for values lower than -10 dB.

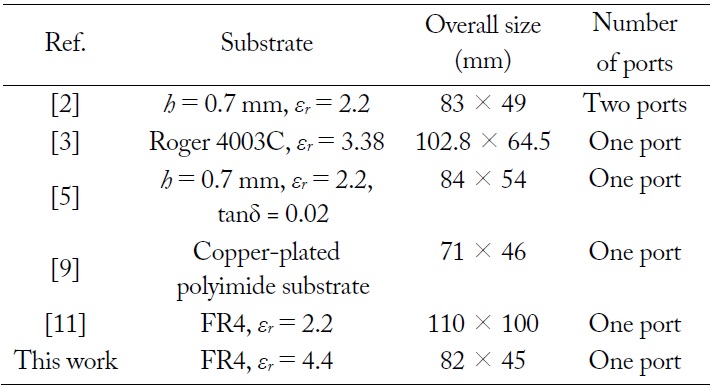

The -10 dB bandwidth for the UHF band frequency covers 883 MHz to 938.2 MHz, which is larger than the bandwidth in the simulation. Fig. 6 presents the measured radiation pattern and gain of the dual-band antenna at 922 MHz. There is good agreement between the simulation and measurement results of the radiation pattern. In the Phi = 90° plane, the dual-band antenna also presents an omnidirectional characteristic that is clearly illustrated in the 3D view of the measured radiation pattern, as shown in Fig. 6(c). A comparison of antenna gain between the simulation and measurement results in a UHF frequency range from 917 MHz to 923.5 MHz is shown in Fig. 6(d). This UHF frequency range is the one used in Korea based on the Korea Communications Commission. The gain in measurement is slightly lower than the gain in simulation because of the losses during the measurement process. A comparison of important factors, such as overall size, the number of ports, the substrates used, and the number of turns, between the proposed antenna and those of related works is presented in Table 1. From this Table 1, it can be seen that the proposed antenna size is significantly compact compared with the other RFID antennas referenced. An FR4 substrate was used, which can reduce the cost of antenna fabrication.

In this paper, a dual-band antenna with HF and UHF band frequencies has been presented. The HF antenna at 13.62 MHz was designed by a three-turn spiral coil, and a novel MOCSRR dipole structure was used to handle the UHF band from 917 MHz to 923.5 MHz. The proposed antenna has a compact size of 82 mm × 45 mm and is printed to both sides of an FR4 substrate with a thickness of 1.2 mm. In addition, the dual-band antenna presents an omnidirectional characteristic at the UHF frequency and the gain is approximately 1 dBi in the desired UHF frequency range.
