FSO communications are potential solutions for a variety of applications, such as last-mile communications, fiber backup, and disaster-recovery communications [1]. Compared to traditional radio-frequency (RF) communications, their advantages include high speed, unlicensed spectrum, and excellent security [2]. However, FSO communications are vulnerable to pointing errors and scintillation. Both pointing errors from the misalignment between transmitters and receivers and the scintillation from atmospheric turbulence can seriously deteriorate communication quality [3].

To overcome these disadvantages, many technologies have been applied in FSO systems, such as adaptive optical (AO) systems, error correct coding (ECC), and relay-assisted transmission. BER performance and channel capacity of an FSO system with AO are studied in [4, 5]. Upper bounds on the pairwise code-word-error probability for coded FSO communication systems through atmospheric turbulence channels are obtained in [6, 7]. In [8], relay-assisted transmission is shown to be an effective tool to mitigate fading for FSO systems operating in atmospheric turbulence channels. A one-relay cooperative diversity scheme is proposed and analyzed for noncoherent FSO communications with intensity modulation and direct detection (IM/DD) in [9]. A novel adaptive cooperative protocol with multiple relays over atmospheric turbulence channels with pointing errors is given in [10].

Spatial diversity is a powerful technique to mitigate the effects of fading in both traditional radio-frequency (RF) and FSO communications. However, unlike an RF signal with broadcast characteristics, the optical signal in an FSO system is usually transmitted from point to point through a line-of-sight path. Therefore, the concept of spatial diversity in FSO differs from that in traditional RF communications. As introduced in [11], spatial diversity in FSO systems can be realized via the use of multiple apertures at the receiver (receive diversity) [12], multiple beams at the transmitter (transmit diversity) [13-15], or a combination of the two [16-23]. Receive diversity and transmit diversity are usually referred to as SIMO (Single-Input Multiple-Outputs) and MISO (Multiple-Inputs Single-Output) respectively. Meanwhile, a system using both receive and transmit diversity is referred to as MIMO (Multiple-Inputs Multiple-Outputs).

For SIMO systems, effectiveness of the two receive-diversity solutions, i.e. aperture averaging and multiple apertures, are compared in [12]. For MISO FSO systems, the simplest transmit-diversity scheme is to send the same signal on different beams, which is usually referred to as repetition coding (RC) [15]. Performance of two other typical transmitdiversity schemes, transmit laser selection (TLS) and multiuser diversity (MD), are presented respectively in [13, 14]. For MIMO FSO systems, approximated expressions of average bit-error probability (ABEP) are derived in [16-18]. The outage performance for MIMO FSO communication systems with on-off keying (OOK) and pulse-position modulation (PPM) are analyzed in [19, 20]. Performance analysis of Gamma-Gamma fading FSO MIMO links with pointing errors is presented in [21]. ABEP of uncoded and optical spatial modulated MIMO FSO systems is derived in [22]. In [23], ergodic capacity characterization of MIMO FSO systems over atmospheric turbulence-induced fading channels is studied. In particular, for SIMO and MIMO FSO systems, equal-gain combining (EGC) and maximal-ratio combining (MRC) are usually performed at the receiver. For MISO systems with RC, EGC is the default combining scheme.

In order to understand well the communication quality offered by different FSO systems for real applications, it is necessary to analyze the performance of the systems. BER is the most effective evaluation metric to demonstrate this quality. In this paper, we introduce four new parallel transmit-diversity schemes in FSO links, namely, switch-and-examine transmit (SET), switch-and-examine transmit with post-selection (SETps), dual-branch transmit laser selection (Dual-TLS), and finally group transmit laser selection (Group-TLS) for communication performance analysis. Particularly, SET and SETps switch to other diversity branches only when an outage occurs, hence they have a simpler structure and lower processing load than the traditional TLS scheme. Dual-TLS and Group-TLS are two multibranch TLS schemes that can meet the peak-power and eye-safety constraints.

In this paper, we derive asymptotic average BER expressions for the four transmit-diversity schemes above, based on an approximate channel model. Then we discuss system complexity, from the aspects of hardware structure, channel estimation rate, and lowest feedback transmission rate. Numerical simulations for the region of high average signal-to-noise ratio (SNR) are presented under different channel conditions. To further illustrate the performance of the four transmitdiversity techniques, we also present the BER curves for FSO systems with traditional TLS or RC as benchmarks. Assuming the same total transmit power and total noise, the BER curve of a MISO FSO system using MRC diversity is also given for comparison. Based on simulation results, analysis of the asymptotic BER performance of the four parallel transmit-diversity schemes is provided.

The remainder of this paper is organized as follows. Section II describes the FSO system model and the approximate atmospheric optical channel model. In addition, we derive a statistical model of channel gain in a MISO FSO communication system. In Section III, we give asymptotic BER expressions for SET, SETps, Dual-TLS, and Group-TLS, based on the channel model described in Section II. In section IV, we conduct the complexity analysis for the four parallel diversity FSO systems. Section V presents some numerical results, and Section VI makes several important conclusions.

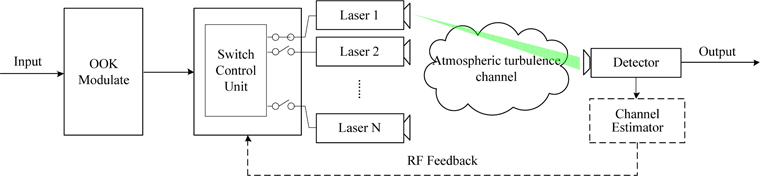

A MISO FSO communication system is illustrated in Fig. 1. It consists of an OOK modulator, a switch control unit and N laser sources at the transmitter, and a photoelectric detector and channel estimator at the receiver. The spacing between the N laser sources is larger than channel coherence distance, so that the N FSO links suffer independent identically distributed (IID) fading. Meanwhile, the data bit period is far less than the channel coherence time, so the FSO transmission suffers slow, flat fading.

In this paper, we adopt OOK modulation, widely used in practical FSO systems since it is much easier to implement than higher-order modulation. The modulated input data is sent to the switch control unit, which can select one or more of the N laser sources to transmit data. The selection principle varies with different transmit-diversity schemes. In a MISO FSO system with repetition coding (RC) [17-20], all N laser sources are selected to transmit data synchronously. In Dual-TLS and Group-TLS systems, part of the N laser sources participate in sending optical signals. For TLS, SET, and SETps schemes, only one laser source is working at any moment, while the others keep silent until switching occurs.

The optical signals through a wireless optical channel, which suffers from both misalignment errors and turbulent fading, are registered by a photoelectric detector at the receiver. A channel estimator is deployed at the receiver to measure the channel-state information (CSI) and send the switching information back to the transmitter, through a low-rate radio-frequency channel. We assume that perfect CSI can be obtained, i.e. no estimation errors are considered at the estimator. Switching and selection among the N laser sources are based on this feedback information.

The photoelectric detector converts the optical power into photocurrents. Assuming that the thermal noise at the receiver may be modeled by additive white Gaussian noise (AWGN), and background illumination is removed from the electrical signal, we can express the received signal y as

where x is the transmitted signal, P_t is the average transmit optical power, hi is the channel gain from the i^th laser source to the receiver, M is the number of current working laser sources with repetition coding, R is the detector response (assumed to be unity), and finally n is signal- independent zero-mean AWGN with variance σ_n². In the assumption of a slow fading channel, the instantaneous SNR at the receiver is defined as

where is the average SNR and is the sum of M random variables. We define the average SNR as the received SNR, when there is no fading or pointing error. Note that in a transmit-diversity scheme, for the sake of fairness the sum of all working-link transmitted power should be equal to that of an SISO FSO system without a diversity scheme.

Channel gain is susceptible to three independent factors: path loss, pointing errors, and atmospheric turbulence fading. Therefore, the channel gain of the i^th FSO link can be expressed as , where is the path loss due to geometric spread, represents fading due to pointing errors, and is the attenuation due to atmospheric turbulence. In the parallel transmit-diversity FSO systems described in this paper, is deterministic and assumed to be unity hereafter. We adopt a widely used model for , derived by Farid and Hranilovic in [3], the probability density function (PDF) of which is

where

and ω_z is the beam waist at the receiver, r is the aperture radius of the detector, and σ_s² is the jitter variance at the receiver. We use the Gamma-Gamma turbulence model to characterize the atmospheric fading , since it is an appropriate fading model over a wide range of turbulence conditions, and its PDF can be expressed as [24]

where Γ(･) is the Gamma function, K_α-β (･) is the α-β order modified Bessel function of the second kind, and α and β are parameters related to the small- and large-scale turbulence eddies and can be obtained as [25]

where σ_x² is the log irradiance variance. The PDF of channel gain h can be calculated as [24]

Substituting (3) and (4) into (6), we can obtain the PDF of the i^th link channel gain in terms of the Meijer’s G-function as [26]

However, (7) is inconvenient to compute the average BER, as the integrals and sums of Meijer’s G-functions are sophisticated. Since the asymptotic behavior of the system performance is dominated by the behavior of the PDF near the origin [2, 13], we can use the series expansion of Meijer’s G-functions at zero and omit the high-order infinitesimal items in the approximation. Then the approximate channel model can be expressed as [2, 13]

where c₁ and c₂ are determined by the relationship of φ² and β as

Since and all links suffer IID fading, we can obtain the PDF of h using a Laplace transform. By taking the single-sided Laplace transform of the i^th channel gain for the PDF, we can get

Then, using , the PDF of h can be obtained by the inverse Laplace transform of Φ_H(s) as

For convenient calculation of average BER, we rewrite (11) in terms of SNR through the change-of-variable rule. Considering the relationship in (2), the PDF of instantaneous SNR at the receiver is given as

The cumulative distribution function (CDF) corresponding to f_γ(γ) is given as

In this section, the average BER expressions for SISO, RC, TLS, and MRC FSO systems are given first, since their BER performances are useful benchmarks for other transmit-diversity schemes. Then we provide the average BER expressions for SET and SETps. At last, the BER performance and system complexities of the two multiple-branch diversity schemes, namely Dual-TLS and Group-TLS, are also studied.

Following the system model described in Section II, the BER of an IM/DD with OOK modulated FSO system under the condition of instantaneous SNR is

where Q(･) is the Gaussian Q-function, where erfc(･) is the complementary error function. The average BER can be obtained by averaging the conditioned BER over the PDF of instantaneous SNR as

where f_γ(γ) is the PDF of instantaneous SNR at the receiver.

In a SISO or MISO FSO system, the corresponding PDF f_γ(γ) is given in (12) by setting M to be 1 for SISO and N for MISO. Since all BER are calculated under IM/DD with OOK modulated FSO systems, P_b(e|γ) is the same for different transmit-diversity schemes. Using the integral formula in [27], we have

We can derive the average BER expressions for SISO and MISO with RC FSO systems as

The average BER expression for the FSO system using the TLS scheme is derived as [13]

Referring to the derivation of MRC receive diversity FSO systems in [21, 22], we can obtain the MRC BER expression as

In the high SNR region, the average BER of an uncoded system under fading channels can be approximated as , where G_c is the coding gain, determining the shift of the average BER curves, and G_d is the diversity order, indicating how fast the BER decreases as the average SNR increases [24]. From (17), (18), (19), and (20), it can seen clearly that the diversity orders of SISO, MISO with RC, TLS, and MISO with MRC FSO systems are respectively

Note that and , which means increasing the number of laser sources can yield higher diversity orders for communication systems.

3.2.1 BER of SET

In the TLS scheme, the CSI of all diversity branches are simultaneously required, which increases the complexity of a practical FSO system. To overcome this disadvantage, we introduce the switch-and-examine transmit (SET) scheme. In a SET FSO system, only the CSI of the current working branch must be estimated. The switch control unit maintains the current transmission link as long as its CSI is above the predetermined threshold. When the quality of the current working branch goes bad, the control unit switches to the next laser source repeatedly, until either it finds a laser source with acceptable channel quality, or all diversity branches have been tried. If no diversity branch is above the preset threshold, the SET transmitter remains on the last laser source to communicate with the receiver.

In receive-diversity schemes, a similar scheme called switch-and-examine combing (SEC) is proposed in [28]. The switching mechanism in SET is similar to that in SEC, but the switching in SEC is achieved by the combiner at the receiver. Assuming the time for feedback and switching is short and can be ignored, the instantaneous statistical characteristics of SNR at the output of combiner can also be used in an SET scheme. Assume that the instantaneous SNR of the current working branch is γ, and that γ_T is the pre-determined threshold SNR; the PDF of γ is derived as in [29]

where F_γ(γ) and f_γ(γ) are the CDF and PDF defined in (12) and (13) by setting M=1. The average BER of a SET FSO system is evaluated as

where P_b(e|γ) is defined in (14). Substituting (22) into (23), we get

where (e) is the average BER of a SISO FSO system derived in (17). We define the definite integral on the right of equation (24) as

The complementary error function erfc(x) in (25) can be rewritten as [30]

where is the Meijer’s G-function. Using the integral equation [30], we can calculate I₁ as

where is the average SNR defined in (2). Finally, substituting (13), (17), and (27) into (24), after some mathematical derivation we obtain the average BER of a SET FSO system as

where coefficients A_j are expressed as

3.2.2. BER of SETps

An SET scheme can greatly reduce system complexity compared to TLS, but this is achieved at the cost of BER performance. When no acceptable diversity link is found after all branches have been examined, SET stays at the last switching branch, which may have the worst channel quality. The switch-and-examine transmit with post-selection (SETps) scheme can compensate for this defect, i.e. the laser source with the best channel quality will be selected when none of the N diversity branches is above the preset threshold. In the case of good channel quality, the performance of SETps is close to that of SET, because few outages and switchings occur in a fine communication environment. If the channel condition goes bad, the performance of SETps will approach that of TLS, since the best branch is selected.

Following the assumptions and definitions in the derivation of average BER for SET, we can obtain the PDF of the instantaneous SNR of the current working branch as [29]

where F_γ(γ) and f_γ(γ) are the same as before. We evaluate the BER for SETps by averaging conditioned error probability over the instantaneous SNR of the active branch. Substituting (30) into (15), we get

where I₁ is the definite integral calculated as (27). We further define definite integral I₂ as

Using the integral equation [30] again, we calculate I₂ as

Substituting I₁ and I₂ into (31), we obtain the average BER for a SETps FSO system as

where the coefficients B_j are expressed as

3.3.1. BER of Dual-TLS

TLS, SET, and SETps use only one diversity branch to transmit data, which results in larger peak optical power of the working laser source than for a transmitter with several laser sources to simultaneously transmit data. However, the peak optical power should be limited, according to eye-safety standards [31]. Considering the restrictions and communication performance, we introduce the Dual-TLS FSO system, in which the transmitter selects two of the best diversity links to transmit data, and the peak power of each laser source is half that of an SISO system. Now we derive the average BER expression for Dual-TLS.

The average BER for Dual-TLS can also be evaluated by averaging the conditioned BER (14) over the PDF of the instantaneous SNR γ_Dual-TLS at the receiver, and f_γDual-TLS(γ) is also derived from the PDF of channel gain h = h_N-1:N + h_N:N at the receiver by variable substitution, where h_N:N and h_N-1:N are the first two best channel gains. However, h_N:N and h_N-1:N are no longer independent but identically distributed, so we can no longer directly derive f_h(h) through a Laplace transform.

Here we abbreviate h_N:N and h_N-1:N respectively as h_N and h_N-1, and the joint density function of h_N and h_N-1 is given by [32]

where f_hi(x) and is the PDF of the i^th channel gain h_i defined in (8), and F_hi(x) is the CDF corresponding to f_hi(x). Hence, we can obtain the CDF of h as [33]

Substituting (8) and (35) into (36), we have

Taking the derivative of F_h(h), the PDF of h can be calculated as

After some mathematical development, f_h(h) can be written as

To evaluate the integral in (40), we define t = h_N-1/h, and the integration can be expressed as

We define , which is a constant for the given parameters c₂ and N. Finally, the PDF of channel gain h at the receiver is

Subsequently, the PDF of instantaneous SNR at the receiver is

where . The average BER calculation for Dual-TLS is the same as for SET and SETps, i.e. substituting (43) into (15). We finally obtain the BER expression for Dual-TLS as

where

From (44), we find that the diversity order of Dual-TLS is

From the above analysis, we find that the diversity order of Dual-TLS is the same as that of TLS, although the number of working laser sources increases, and the CSI used for the TLS and Dual-TLS diversity schemes is the same.

3.3.2. BER of Group-TLS

There is another multiple-branch TLS transmit-diversity scheme called Group-TLS, in which all N transmitters are divided into several groups. Then the best branches from each group are selected to transmit data simultaneously. Group-TLS scheme can further reduce the peak power of each laser source. Compared to traditional MISO FSO systems, Group-TLS excludes some diversity branches with bad channel quality.

To simplify the analysis, we assume that N is even, and that all of the laser sources are grouped into N/2 groups, i.e., {h₁,h₂}, {h₃,h₄}⋯{h_N-1,h_N}. According to the order statistics, the PDF of the larger channel gain in the j^th group is [32]

where f(h_i) and F(h_i) are the PDF and CDF corresponding to the channel gain of the i^th branch. The larger channel gains of each group are IID random variables, and the channel gain at the receiver should be

The PDF of h^Group-TLS can be calculated by Laplace transform. Taking the Laplace transform of (46), we have

Then, using the fact that and taking the inverse Laplace transform of Φ_H(s), the PDF of h can be expressed as

By the relationship and setting M=N/2, we obtain the PDF of instantaneous SNR at the receiver as

Finally, through averaging the conditioned BER (14) over (50), the average BER for Group-TLS is

where . From (51), we can clearly see that the diversity order of Group-TLS is

On the basis of the above discussion, we conclude that the diversity orders of TLS, Dual-TLS, and Group-TLS are the same, because all of these three diversity schemes use the same CSI, in other words, the channel gains of all N diversity branches.

In this section, we discuss the complexity of TLS, SET, SETps, Dual-TLS, and Group-TLS FSO systems in the aspects of hardware structure, channel estimation rate, and lowest feedback transmission rate. We will summarize the results for each transmit-diversity scheme in Table 1.

All of these transmit-diversity FSO systems need channel estimations and feedback links, so that the transmitters can obtain CSI or switching orders. Besides, Dual-TLS and Group-TLS systems need an additional synchronization unit, for correct detection of the optical signals from different diversity branches. Therefore, Dual-TLS and Group-TLS have the most complex hardware structure.

We assume that the channel estimator at the receiver estimates K times per second, for every diversity branch. For TLS, Dual-TLS, and Group-TLS, the total number of channel estimations at the receiver is KN times per second, since the CSI of all N diversity branches are required. For SET, only the CSI of the current working branch is estimated, so the channel estimation rate is K times per second, which is much lower than for TLS. We further assume that the channel outages occur P times per second, and that there are Q times in which the CSI of all branches are below the preset threshold, i.e. K ≥ P ≥ Q. K − Q + QN channel estimations are needed at the SETps receiver, and there are P switches at its transmitter. It can be seen that the SET system needs the fewest channel estimations, followed by SETps, TLS, and Dual-TLS, while Group-TLS requires the most channel estimations.

To reduce feedback information through RF links, we compare the channel quality for each diversity branch achieved at the receiver. The feedback information is the index of the diversity branch or switching orders, instead of quantified channel gains. Therefore, for the TLS scheme, the lowest feedback transmission rate is K[log₂N] bits/s, where[x] denotes the smallest integer larger than x. Similarly, the lowest feedback transmission rate for Dual-TLS is twice that for TLS, i.e. 2K[log₂N] bits/s, since the indices of the two best channels must be returned. In a general Group-TLS diversity system, we assume that there are S laser sources in each group, N/S groups (assumed to be an integer), and that the index number of the best link in each group will feed back to the transmitter; then the lowest feedback transmission rate is (KN/S)log₂S bits/s. For the special case in this paper, i.e. S = 2, the lowest feedback transmission rate is KN/2 bits/s. In an SET diversity system, the lowest feedback transmission rate is P bits/s, because this system requires only one bit to be sent to the transmitter to notice an outage. Otherwise, the low-rate feedback link can keep silent, to save energy. In a SETps system, the lowest feedback transmission rate is P−Q+Q[log₂N] bits/s, the additional Q([log₂N]−1) bits/s being used to tell the transmitter to which diversity branch it should switch.

In this section, the average BER numerical simulations of parallel transmit diversity for different FSO systems are presented. First, the asymptotic average BER performances of SET, SETps, Dual-TLS, and Group-TLS are given. The BER curves for SISO, RC, MRC, and TLS are also presented under the same channel conditions, as benchmarks for comparison. In addition, the diversity orders of SET and SETps are also discussed. Since the approximate channel model adopted in (8) is accurate in the region of high average SNR, the asymptotic BER are calculated with average SNR above 50 dB. Second, we study how channel parameters affect the diversity orders of SET and SETps. We present the main channel parameters used during simulations in Table 2, in which the first three columns are the turbulence parameters, followed by misalignment parameters in the next three columns, and the last column contains the lesser of φ² and β, since the relationship between these two parameters is useful in the following analysis.

To investigate the performance of the four transmit-diversity techniques in our paper, we illustrate the BER curves of the MIMO FSO systems adopting RC at transmitters and EGC or MRC at receivers, with diversity methods in [21-23] for comparison. For the sake of fairness, we also present the BER curve of a MISO FSO system with RC and EGC as , and a MISO FSO system with RC and MRC as . Furthermore, the BER curve of the TLS scheme in [13] is also given.

The asymptotic average BER curves for the FSO systems using the SET scheme are given in Fig. 2. Two SET BER curves are plotted for different diversity branches, i.e. N = 3, 4. We adopt the same channel parameters, i.e. Case 4 in Table 2. The BER with 4 diversity branches is better than that with 3 branches. Although there is only one diversity branch working in the SET scheme, more diversity branches provide better BER performance, since more branches means more useful CSI.

The BERs for SISO, RC, MRC, and TLS are also presented for comparison. It can be seen that BER performance of an FSO system using the SET diversity scheme is significantly improved, compared to that of a SISO FSO system; however, the improvement for SET is less than that for RC, MRC, or TLS. Compared to TLS, SET trades BER performance for simpler system structure and lower processing load, as discussed earlier, i.e. fewer channel estimations and lower feedback rate. As mentioned, based on (28), the diversity order of SET cannot be obtained analytically, but from Fig. 2, we find that it is between that of SISO and of TLS, i.e. . For high average SNR, we also find that the BER of SET becomes flat, which implies that decreases. When average SNR is high enough, the laser sources in SET FSO system hardly switch among diversity branches, and it can be considered a SISO FSO system in this situation. Hence, the diversity order of SET decreases in this region.

In Fig. 2, we can see that the MISO FSO system with MRC performs better than the system with RC, since the system with RC adopts the EGC scheme at the receiver. As we know that MRC is the optimal receive combining principle, therefore the BER for a MRC FSO system is better than that for an RC FSO system. Besides, both MISO FSO systems with MRC or RC perform worse than systems with TLS, because the TLS transmitter can select the best link to transmit signals, rather than no selection in an RC transmitter.

We demonstrate the asymptotic average BER for SETps in Fig. 3, and the BER performances of SISO, RC, MRC, TLS and SET are also shown for comparison. The channel parameters are the same as in Fig. 2. It can be clearly seen that SETps performs between TLS and SET. In the first part, SETps performs almost the same as TLS, since the average SNR is not high enough, and none of the diversity branches is above the preset threshold. Since the SETps transmitter has to frequently switch among the laser sources, it works like TLS in this situation when the best link is selected. As the average SNR increases, SETps gradually tends toward SET. Because the transmit power is high enough, there is no need for the SETps transmitter to switch and select the best link often. If any of N diversity branches is above the threshold, SETps is just the same as SET. The moderate BER performance of SETps is determined by its compromise of system complexity, discussed previously. As for SET, the diversity order of SETps cannot be derived analytically. In Fig. 3, we can see that the diversity order of SETps is larger than that of SET, i.e. . Compared to SET, more CSI is introduced to select the best link in SETps when none branches is above the threshold.

The average BER curve for the FSO system using Dual-TLS is provided in Fig. 4. We also give the BER curves for traditional TLS, RC, and MRC with the same diversity branches, as benchmarks. In this figure we can see that the BER of Dual-TLS is slightly inferior to that of TLS, since the introduction of suboptimal branch increases ambiguity in CSI. However, Dual-TLS performs better than RC and MRC when N is greater than 2, since some diversity branches of poor quality are removed in Dual-TLS. The advantage of Dual-TLS is that it can overcome the peak power limit at the transmitter, with little BER performance loss. In (45) we derived the diversity order of Dual-TLS as (c₂+1)N/2, and it is the same as that of TLS and RC, which is demonstrated by the three parallel curves in Fig. 4. We also find that Dual-TLS systems with 4 branches can achieve lower BER and higher diversity order than systems with 3 branches.

We demonstrate the asymptotic average BER result for a FSO system using Group-TLS in Fig. 5. All simulation results are obtained under the same channel conditions and the same number of diversity branches, N=6. The BER curves for FSO systems with Dual-TLS, TLS, RC, and MRC are also presented, for comparison. We can see that the FSO system with Group-TLS performs much better than that with RC, and even slightly better than that with MRC, but its performance is inferior to that of Dual-TLS and traditional TLS, because introducing more branches of poor quality degrades the overall BER performance. However, Group-TLS has more working diversity branches than Dual-TLS and traditional TLS, and can further reduce peak power. Finally, similar to Dual-TLS, we can see that the diversity order of Group-TLS is the same as that of TLS and RC in Fig. 5, by the parallel curves.

A useful conclusion proposed in [13] tells us that the diversity order of TLS is determined by Min{β, φ²}. In our study, we have derived the average BER expressions for Dual-TLS and Group-TLS, and we find that the diversity orders of Dual-TLS and Group-TLS are the same as that of TLS. In fact, the parameter c₂+1 is just Min{β, φ²}, and the conclusion in [13] is also true for Dual-TLS and Group-TLS in this paper. However, for SET and SETps, the diversity orders still cannot be obtained analytically. Hence, in this section we examine the diversity orders of SET and SETps through numerical simulations. We give the BERs for SET and SETps under different channel conditions, and observe how the diversity orders vary.

The BERs of SET and SETps are shown in Fig. 6(a) and 6(b) respectively, when φ²>β . In the simulations we choose the channel parameters from cases 4, 5, and 6 in Table 2. In Fig. 6 we find that the two curves with the same turbulence intensity σ_x²=1.5 are almost parallel. In addition, increasing pointing errors σ_s/r from 1 to 2 deteriorates BER performance, but it does not change the slopes of the BER curves. Note that although we increase the turbulence intensity, the condition φ²>β is still satisfied; this means that the diversity orders of both SET and SETps systems are hardly affected by the pointing errors, as long as the pointing-error parameter φ² is larger than the atmospheric turbulence parameter β. When we fix the jitter variance σ_s/r =1 and increase the turbulence intensity σ_x² from 1.5 to 4.0, we find that the slopes of the BER curves change significantly. Hence, we can say that the diversity orders of SET and SETps are significantly affected by turbulence intensity when φ²>β.

Similar simulations are conducted in which the pointing-error parameter φ² is smaller than the turbulence parameter β, i.e. φ²<β. To satisfy this condition, we adopt the parameters corresponding to cases 1, 2, and 3 in Table 2, for which the BER curves of FSO systems using SET and SETps are given in Figs. 7(a) and 7(b) respectively. In Fig. 7 we can see that both SET and SETps have parallel BER curves when the pointing-error parameters are the same, i.e. . The increase of turbulence intensity from σ_x²=1.0 to σ_x²=1.5 does not change the slopes of the BER curves. On the other hand, if we fix the turbulence intensity at σ_x²=1.0 and change the jitter variance from σ_s/r =2 to σ_s/r =2.5, the BER curves for SET and SETps are no longer parallel. This means that the change in pointing errors has an impact on the diversity orders of both SET and SETps FSO systems. Considering the analysis in Fig. 6, we conclude that the diversity orders of SET and SETps are significantly affected by Min{β, φ²}. The conclusion for TLS in [13] is also suitable for SET and SETps in this paper.

In this paper, we investigate the asymptotic BER performances and diversity orders of FSO links using parallel transmit-diversity schemes. The asymptotic BER expressions for FSO links with SET, SETps, Dual-TLS, and Group-TLS are derived, based on an approximate channel model. The BER performances in the region of high average SNR are presented using numerical simulations. According to the simulations, we find that TLS performs better than SET, SETps, Dual-TLS, and Group-TLS in terms of BER. In addition, SET and SETps can reduce system complexity with performance improvement, and Dual-TLS and Group-TLS can overcome the limitation of peak power without much BER deterioration. Finally, diversity orders of the four schemes are determined by Min{β, φ²}.
